SONOFF MINI-RBS: Complete Wiring & Calibration Guide

Welcome to the ultimate guide for upgrading your home window treatments. If you are tired of manually cranking your blinds every morning, the sonoff mini rbs is your perfect upgrade. This compact little device effortlessly transforms traditional motorized applications into a modern smart home marvel. By upgrading your manual shutters, you significantly boost your home energy efficiency. You can block out the hot summer sun automatically or let in the warming winter light to save on HVAC costs. You also increase your home security by simulating your presence while you travel. This comprehensive walkthrough covers everything you need to know about your new module. You will learn the best practices for safe wiring and how to handle standard wall boxes. We will also dive into advanced motor calibration and robust ecosystem integration.

Decoding the Proven Specs of the sonoff mini rbs

Before you grab your screwdrivers, you must understand the hardware powering your new automated blinds. The engineering behind this module makes it a standout choice for smart home enthusiasts. Every component serves a specific purpose for delivering reliable daily performance.

The Power of the ESP32 Chip

At the heart of this module sits the incredibly robust ESP32 smart home hardware. This powerful microcontroller offers exceptional low-latency processing for instantaneous commands. When you press a button on your phone, your blinds react immediately without frustrating delays. This advanced chip also ensures a rock-solid connection as a dependable Wi-Fi relay module. It gracefully handles network fluctuations, meaning your devices remain online even when your router is under heavy load. The ESP32 also opens up massive potential for custom local networking solutions down the road.

Design for EU Junction Boxes

One of the biggest hurdles in smart home installation is fitting bulky relays into tiny wall spaces. Thankfully, the engineers designed this unit specifically with EU junction box compatibility in mind. Its ultra-compact form factor allows you to slide it effortlessly behind your existing physical switches. This flush-mounting capability ensures your interior design remains clean and completely unchanged. You do not have to replace your matching wall plates or compromise your home aesthetics. You retain total manual control while adding a powerful invisible layer of automation. 1A motor load limit: This rating defines the maximum electrical current the module can safely supply to the inductive load of a shutter motor. Exceeding this limit can damage the internal relays and significantly shorten the lifespan of your smart switch.

The Complete Step-by-Step Wiring Guide for the sonoff mini rbs

Handling main voltage requires absolute precision and unwavering respect for electrical safety. You must approach the installation logically to protect your home and your new hardware. Follow these essential guidelines to guarantee a flawless and secure setup.

Pre-Installation Checklist

Always gather your required tools before you touch a single wire. You will need a quality Phillips head screwdriver, precision wire strippers, and a reliable non-contact voltage tester. Having everything within arm's reach prevents you from walking away from exposed wiring. Safety must remain your absolute top priority throughout this entire process. You must locate your main electrical panel and turn off the breaker supplying power to your shutters. Always use your voltage tester on the wires to confirm the power is entirely dead before proceeding.

Wiring Diagrams & Output Connections

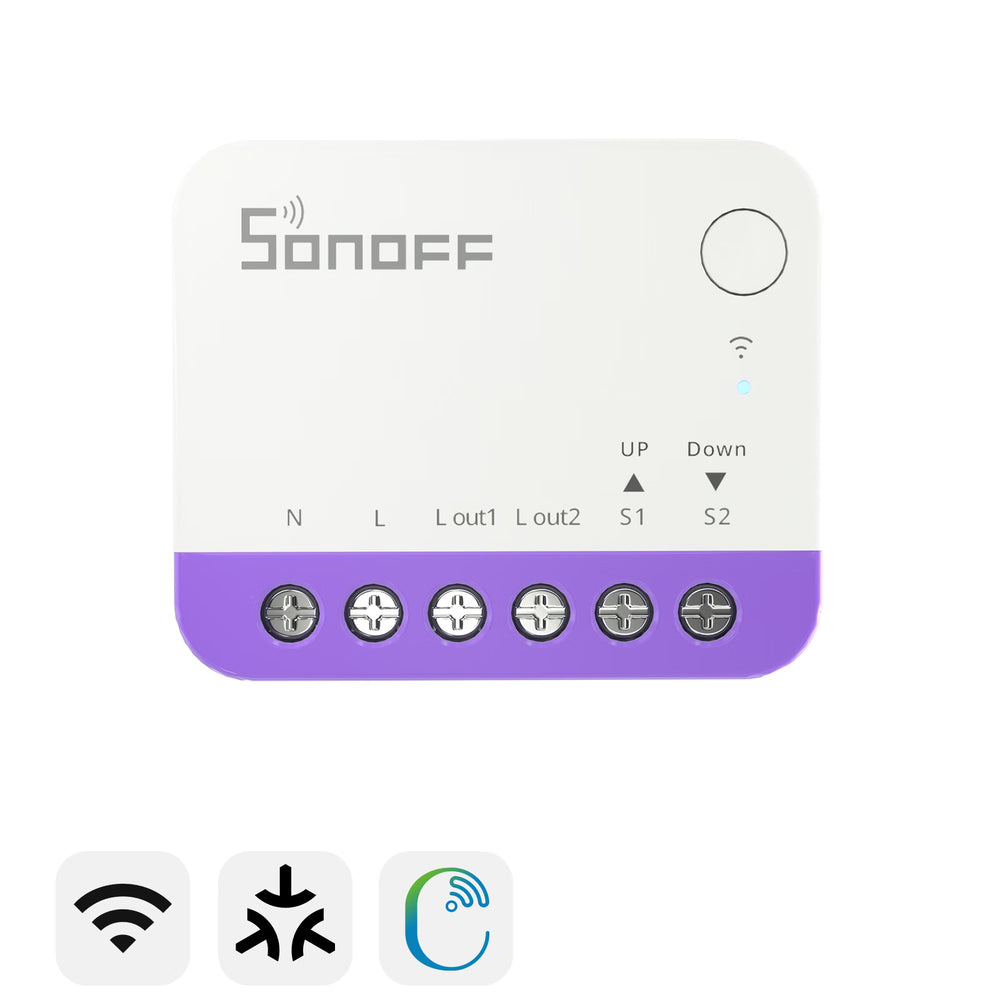

Understanding your terminal ports is the key to a successful configuration. The L-In and N-In terminals require your incoming live and neutral wires from the main breaker. The S1 and S2 ports connect directly to your physical wall switch for manual operation. Your motor outputs control the actual directional movement of your shutters. You must connect the directional wires of your motor to the dedicated up and down output terminals on the module. Reversing these wires will simply cause your blinds to operate opposite of your app commands. You absolutely must have a neutral wire present in your wall box to power this device. Unlike basic lighting switches, motor controllers require constant independent power to function. If you lack a neutral wire, you must hire a certified electrician to pull one for you.

Mounting the Device Safely

Once you securely tighten all terminal screws, you must carefully arrange the wires in the backbox. Avoid sharply bending or aggressively crushing the wires, as this can cause dangerous micro-fractures in the copper. Gently fold the excess wire length like an accordion into the back of the junction box. Position the module so the internal antenna faces outward toward the room if possible. Proper placement ensures maximum heat dissipation and prevents Wi-Fi signal degradation. Secure your wall plate over the box, turn your breaker back on, and watch the status LED blink to life.

Step 1: Turn off the main breaker and verify zero voltage with your tester.
Step 2: Connect your incoming Live wire to the L-In terminal and the Neutral wire to N-In.
Step 3: Wire your physical up/down wall switches into the S1 and S2 terminals.
Step 4: Connect your motor's directional control wires to the corresponding directional output terminals.
Step 5: Carefully pack the module into the junction box, restore power, and prepare for pairing.

The Proven Method for Motor Calibration and Percentage Control

Simply turning your motor on and off is not enough for a truly smart home experience. You want the ability to let in exactly the right amount of morning sunlight without blinding yourself. This requires precision data, which is where careful calibration comes into play.

Why Travel Calibration is Necessary

Without calibration, your smart controller has no idea how long your specific window takes to close. It operates blindly, pushing power until it assumes the task is complete. This limits your automation to basic, binary fully-open or fully-closed states. When you calibrate the travel time, you unlock advanced motorized blinds automation capabilities. The system learns the exact millisecond duration required to travel from the top to the bottom. This data allows the internal software to calculate precise stopping points anywhere along the window.

Calibration via the eWeLink App

You initiate this learning process directly through the device settings in your smartphone application. Navigate to the calibration menu and ensure your blinds are fully open before beginning. Press the start button, and the app will instruct the motor to travel completely downward. Once the blinds hit their bottom mechanical limit, you immediately stop the timer in the app. The software records this total travel duration and saves it to the module's onboard memory. If your automatic calculation seems slightly off, you can manually input the exact seconds using a stopwatch.

Testing the Percentage-Based Control (0-100%)

With the travel time securely saved, you must verify the accuracy of your new settings. Motor calibration percentage features rely on this data to translate slider commands into timed motor runs. You should test several different increments to ensure the math aligns with physical reality.

25% Open: Test this setting to ensure the blinds stop a quarter of the way up the window.
50% Open: Command a half-open state to verify the motor stops perfectly in the middle.
75% Open: Check this position to allow maximum light while maintaining a slight top shadow.
100% Closed: Ensure the blinds fully deploy and hit the bottom mechanical stop without straining the motor.

Advanced Voice Control & App Integration: The Ultimate Ecosystem

Your newly wired and calibrated shutters are now ready to join your broader smart home network. By connecting them to your central command systems, you unlock hands-free convenience. This integration bridges the gap between simple remote control and genuine home automation.

Configuring the eWeLink Dashboard

You begin your digital setup by utilizing robust eWeLink app integration. Put your module into quick pairing mode by holding the manual switch for five seconds until the LED flashes rapidly. Open the app, add a new device, and input your 2.4GHz network credentials. Once paired, you can immediately begin building customized smart scenes based on your daily routine. Set a "Good Morning" trigger that automatically rolls the shutters up to 40% when your alarm sounds. You can also create weather-based triggers that close the blinds automatically when summer temperatures peak.

Connecting to Amazon Alexa & Google Home

For the ultimate modern experience, you need seamless voice control (Alexa & Google Home). Open your preferred voice assistant application and search for the eWeLink Smart Home skill. Link your accounts by logging in, and authorize the assistant to discover your newly named shutter switch. You can now issue natural voice commands from across the room without touching your phone. Say "Alexa, set the living room blinds to 50 percent" to instantly adjust your privacy levels. You can also group multiple shutters together to close an entire floor with one simple phrase.

Beyond the Cloud: Local Integration with Home Assistant

While cloud connectivity offers incredible convenience, power users demand greater reliability for critical infrastructure. Depending on remote servers means your automated routines might fail if your internet provider experiences an outage. Taking your setup local guarantees your home operates flawlessly no matter what happens externally.

Why Local Control Matters for Reliability

When you rely on cloud services, your command travels from your phone, out to a remote server, and back to your house. This unnecessary trip introduces slight delays and creates a single point of failure. If the manufacturer's server goes down for maintenance, your smart triggers suddenly stop working entirely. By keeping the communication entirely within your own house, you eliminate these vulnerabilities. Local control ensures near-instantaneous response times because the data never leaves your Wi-Fi router. Your automated morning routines will execute perfectly even if a storm knocks out your neighborhood fiber connection.

Integrating via Home Assistant

The absolute gold standard for offline automation is a dedicated Home Assistant local integration. This powerful, open-source platform acts as an uncompromised brain for your entire property. You can connect your module using the popular Sonoff LAN component available through community add-ons. This bypasses the cloud API entirely, pulling the device directly into your customized dashboard. You can write incredibly complex logic, like tracking the precise angle of the sun based on your home's GPS coordinates. Home Assistant will then micro-adjust your shutters continuously throughout the day to completely eliminate screen glare.

Are you ready to completely transform your living space with intelligent shading? Grab your very own sonoff mini rbs today and start building the smart home of your dreams. Check out our store for exclusive deals and subscribe to our newsletter for more expert automation guides!

Conclusion & Final Thoughts

Automating your window treatments is one of the most rewarding upgrades you can make to your property. It provides immediate daily convenience, drastically improves your privacy, and passively lowers your monthly utility bills. With the right hardware, this seemingly luxurious feature becomes highly accessible to any dedicated DIYer. By following proper wiring protocols and mastering the travel calibration, you guarantee years of flawless operation. Remember to respect the electrical limits of the relays to protect your investment over the long haul. Enjoy the comfort of controlling your environment with a simple swipe or a quick voice command.
